Mechanisms of a coniferous woodland persistence under drought and heat

Tree mortality due to warming and drought is an increasingly observed feature of global forests (Allen et al 2015). Tree mortality has more than doubled throughout much of the Americas in the last forty years (McDowell et al 2018), consistent with a global temperature-driven impact (e.g. Breshears et al 2005, Adams et al 2009, Williams et al 2013). Drought experiments that kill trees under warmer conditions result in faster death (Duan et al 2014, Allen et al 2015, Adams et al 2017a). The increased mortality under such hotter droughts is related to both temperature and vapor pressure deficit (VPD) impacts on carbon and water metabolism (Adams et al 2017b). Predictions suggest that the combination of drought extremes and climate warming, e.g. e.g. global-change-type droughts (Breshears et al 2005, 2009) or hotter droughts (Allen et al 2015) will increase tree mortality globally.

Piñon pine-juniper (Pinus edulis-Juniperus monosperma) woodlands have provided an useful system for examining the mechanisms of mortality and survival over the last decade (Breshears et al 2018), from theoretical (e.g. McDowell et al 2008), observational (e.g. Breshears et al 2005, 2009, Redmond et al 2015) and experimental standpoints (e.g. Plaut et al 2012). The experimental value of these woodland systems arises because (a) they are feasible to manipulation, with mature trees only 3–6 m tall, (b) pine and juniper are sympatric yet they have very different hydraulic and carbon metabolism strategies during droughts (e.g. West et al 2008, Limousin et al 2013, Dickman et al 2015), and (c) they have divergent rates of death during drought (Breshears et al 2005, Shaw et al 2005). Regional droughts and a previous field drought-manipulation both resulted in pine mortality within 12 months, followed by juniper mortality after ∼24 months, which were tied closely to prolonged periods of very negative pre-dawn water potential (Breshears et al 2009, Plaut et al 2012). Additionally, heat accelerates mortality in piñon pine saplings (Adams et al 2009) and seedlings (Adams et al 2017a). At the site described in this paper, however, experimental drought and heat manipulations failed to induce mortality even after five years of treatment (Adams et al 2015, Grossiord et al 2017a). Here, we address the mechanisms that underlie this surprising survival.

A critical challenge given the empirical and process-model predictions of increasing mortality rates in coniferous systems is understanding the potential mechanisms of tree persistence under drought and heat. Unfortunately, these mechanisms are rarely quantified, potentially resulting in overestimates of predictions of future forest loss (Keppel et al 2012, Lloret et al 2012, McDowell et al 2016). Topographic positions that enable access to quasi-permanent soil water sources are among the plausible mechanisms underlying plant survival to drought and heat, based on observational and modeling studies (Allen and Breshears 1998, Redmond et al 2015, McLaughlin et al 2017, Tai et al 2017). To understand the persistence of trees in the future we can also consider cause-and-effect field experiments in mature forests using treatments that simulate drought under warmer conditions. Such experiments can be applied to forests to investigate just how severe a hotter-drought they can survive, and the mechanisms by which they survive or die.

We conducted five-year experimental manipulations of precipitation (∼45% reduction, referred to herein as drought), temperature (+4 °C above ambient) and combined drought and increased temperature relative to a control in a mature piñon pine-juniper woodland to examine the mechanisms of mortality and survival under drought and elevated temperature. Multiple papers have been published from this experiment (Adams et al 2015, Grossiord et al 2017a, 2017b, 2017c, McBranch et al 2018) but none have focused on understanding the mechanism(s) that may have promoted the tree survival of drought and heat. Our initial hypothesis was that tree persistence under experimental drought and warming should be associated with lower evidence of hydraulic failure and carbon starvation, and greater belowground water uptake (e.g. McLaughlin et al 2017). Our empirical and modeling approaches allowed testing of this hypothesis from hydraulic and carbon-based perspectives in a comprehensive manner to allow strong inference. Additionally, we measured insect abundance and attack to investigate the role of biotic attack in persistence under warming and drought.

Experimental design

Site description

Relative extractable water

Soil drought intensity experienced by trees was estimated using the daily relative extractable water in the soil over the whole root zone (REW, unitless) per Grossiord et al (2017a). This value varies between 1, i.e. field capacity, and 0, i.e. permanent wilting point. We used the forest water balance model BILJOU to estimate REW at a daily-time scale by using measurements of daily climatic conditions at the site (rainfall, radiation, windspeed, and air temperature and humidity). At a daily-time scale, this model calculates the different water fluxes in the ecosystem: tree transpiration, understory evapotranspiration, rainfall interception and drainage, which are all dependent on leaf area index (LAI, m² m⁻²) and evaporative demand (i.e. the potential evapotranspiration, mm). REW at this site correlates well with both measured soil water content (top 15 cm) and plant pre-dawn water potentials (Grossiord et al 2017a). For example, we observed a strong relationship between REW and mean soil water content over the 0–50 cm soil profile (y = 23.95x +6.02; R² = 0.68; P < 0.001) demonstrating that simulations of REW from the model reflected the soil water content (above the bedrock) at our site (Grossiord et al 2017a).

We measured LAI with a LAI-2000 Plant Canopy Analyzer (PCA, LI-COR, Lincoln, NE, USA) in June 2015. Measurements were taken at dawn at 12 locations within the site but outside the rain exclusion structure and averaged to plot LAI (1.5 ± 0.3 m² m⁻²). Air temperature and humidity inside the chambers were used to simulate REW in the heat and heat-drought treatments, and 45% of incoming precipitation was withheld for simulations of REW in the drought and heat-drought treatments. Maximum extractable water in this soil type was assumed to be 120 mm (Soil Survey Staff, Natural Resources Conservation Service, United States Department of Agriculture, http://websoilsurvey.nrcs.usda.gov). Bulk density was measured at the site in July 2015 and was equal to 1.4 g cm⁻³. Simulations of REW with the BILJOU model were performed online (https://appgeodb.nancy.inra.fr/biljou/). REW was also simulated at a nearby site (∼10 km distant) that experienced significant tree mortality in 2002 (Breshears et al 2005, 2009) (figure 1) to determine the long-term soil moisture conditions and drought intensity experienced by trees in the study region. Simulations were conducted using yearly on-site measurements of LAI, 120 mm maximum extractable water in the soil and soil bulk density of 1.4 g cm⁻³.

Zoom In Zoom Out Reset image size

Physiological measurements and biotic assessments

Modeling

Statistical analyses

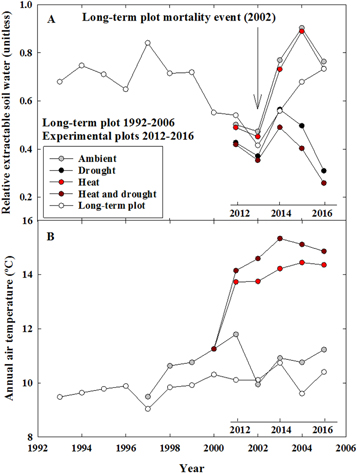

The experimental manipulations successfully reduced precipitation and REW, and elevated temperature, over the five years of treatment. We present these results in figure 1 in contrast to the historic drought that killed trees in this region; the manipulations along with regional climate caused conditions between 2012–2016 that were more severe than those of the 2002–2003 drought that killed up to 90% of pines and 25% of junipers locally (figure 1; Breshears et al 2005, 2009, Garrity et al 2013).

Despite the severe experimental treatments, no trees of either species died. The percentage brown foliage never exceeded 12% for either species (p > 0.05 for all treatments compared to ambient; figure 2(A); see SI2 for full statistical results); far below the threshold of >50%–90% for mortality observed for these species (Breshears et al 2009, Gaylord et al 2013). NDVI, another metric of canopy health, likewise showed no treatment impacts (p > 0.18; figure 2(B)). Stomatal conductance and photosynthesis (p < 0.05 for drought in juniper and all treatments in pine), leaf-specific hydraulic conductivity (p < 0.05 for heated juniper and droughted pine), and canopy conductance (p < 0.05 for drought for both species; figures 2(C)–(E), (G)) all showed treatment impacts but none were as strongly impacted as has been observed prior to mortality of these species (Pangle et al 2012, Plaut et al 2013). The mid-day to pre-dawn water potential slope, a metric of iso/anisohydry, showed no change in response to the treatments (p > 0.85; figure 2(F)), nor did whole-tree leaf area:sapwood area ratios (p > 0.20; figure 2(H), consistent with twig-measurements Grossiord et al 2017b). Based on these results (figure 2), it appears that the treatment impacts on leaf and whole-tree level physiology were relatively minor despite the severe experimental treatments (figure 1).

Zoom In Zoom Out Reset image size

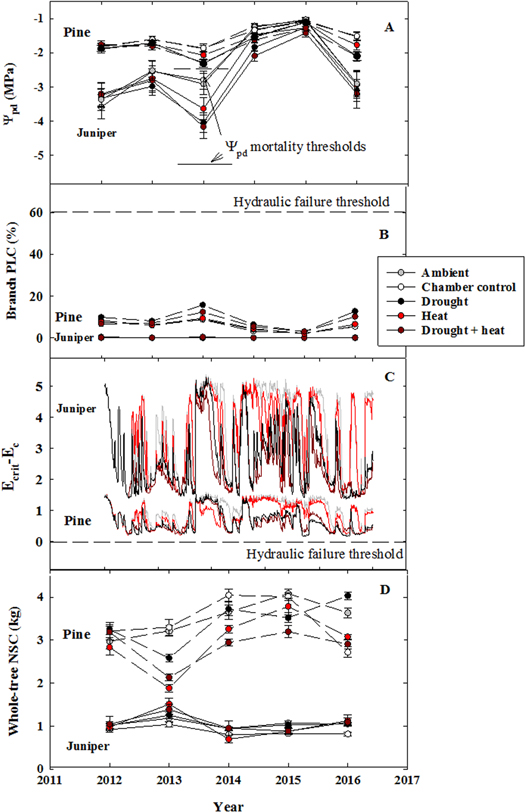

Consistent with the small experimentally-induced shifts in physiology (figure 2), there was little evidence that the droughted and heated trees approached thresholds for carbon starvation or for hydraulic failure (figure 3). The April–August average Ψ_pd did not exceed the previously determined mortality thresholds for these species (figure 3(A); McDowell et al 2016). There were significant treatment effects for heated juniper and heated and droughted pine (p < 0.05) but these trees showed little apparent damage to their crowns (figures 2(A) and (B)). Branch level PLC, calculated using Ψ_md and on-site vulnerability curves showed that neither species exceeded 20% PLC, far below the posited mortality threshold of ≥60% (McDowell et al 2013, Anderegg et al 2015, Sperry and Love 2015, Adams et al 2017b; figure 3(B)). Modeled transpiration rates relative to the species-specific critical rates to induce embolism (E_crit–E_c) never fell below zero, again suggesting that significant hydraulic failure did not occur in these trees (figure 3(C); Sperry and Love 2015). Finally, whole-tree non-structural carbohydrate mass (NSC; concentration values scaled with allometric equations) showed a significant treatment impact for heated and heat plus drought pine trees (p = 0.01) but never fell dramatically below ambient levels (figure 3(D)).

Zoom In Zoom Out Reset image size

Two landscape-scale mechanisms of tree persistence under drought and heat were supported. First, water isotope measurements and model simulations both showed that juniper and pine acquired water from below the bedrock surface throughout the experimental period (figures 4(A) and (B)). Specifically, comparison of tree xylem water isotope ratios with soil water isotope ratios revealed consistent tree use of bedrock water (figure 4(A)) despite variation across seasons and treatments (Grossiord et al 2017a). Consistent with the isotope results, TREES model simulations were unable to reproduce observed water potentials without inclusion of rooting access to a bedrock water source (figures 4(B), 5 and 6). Bedrock access had a large impact on mortality likelihood, as simulations with no bedrock access reached lower whole-tree hydraulic safety margins and had higher PLC more frequently than simulations with bedrock access (figures 5 and 6). Thus, two independent lines of evidence suggest that access to bedrock water appears to buffer the trees from severe drought and heat impacts and may be responsible for the trees not exceeding the thresholds associated with mortality (figure 3).

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

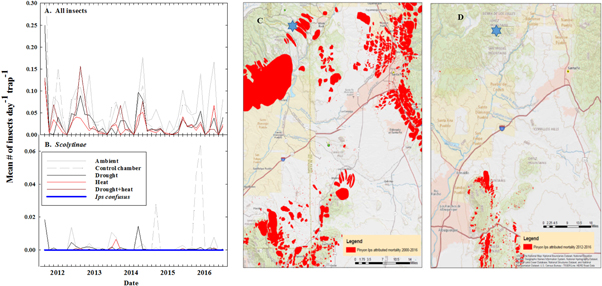

A second potential mechanism of piñon persistence may have occurred at this site. Insect trapping showed abundant insect presence at the site (figure 7(A)) but few Scolytinae (bark beetles) were trapped (figures 7(C) and (D)). This indicates that while insects were generally abundant, those that attack these tree species (Scolytinae) were notably absent. Most noteworthy, the bark beetle species that kills piñon pine, Ips confusus (LeConte), was never trapped on site (figure 7(B)). Likewise, no evidence of bark beetle attack on the tree bark was observed (Online table 1). These observations are consistent with the lack of Ips confusus hosts (live piñon pine) in the surrounding region (figures 7(C) and (D)). The 2002 drought removed the vast majority of mature piñon pine from the local landscape (figure 7(C)) and subsequently there was virtually no detected presence of insect attacks in the region of the field site (via aerial detection; USDA Forest Service, 2018), even during the particularly severe regional drought of 2013 (figure 7(D)). This explanation applies only to piñon, not juniper, at this site.

Zoom In Zoom Out Reset image size

Our test of tree persistence under experimental hotter-drought demonstrates that these species can withstand particularly severe conditions (figure 1) when they have access to a quasi-permanent source of water (figure 4), relative to that expected based on prior observations and experiments on these species (e.g. Breshears et al 2005, Adams et al 2009, Plaut et al 2012). These results are consistent with our hypothesis that resistance to drought and heat would be associated with minimal carbon starvation or hydraulic failure (figure 3) and greater belowground water uptake (figures 4–6). We also observed support for the additional mechanism of isolation of trees from attacking insects (figure 7).

Initially, the lack of strong physiological impacts or mortality (figures 2 and 3) was surprising given that the treatment effects on soil moisture and temperature (figure 1) were more severe than those that resulted in widespread mortality of these species previously in this same region, both during regional drought (Breshears et al 2005, 2009, Garrity et al 2013) and experimental drought (Pangle et al 2012, Plaut et al 2013, Gaylord et al 2013). The resistance of these trees to severe drought and heat treatments appears to originate with their access to water in the bedrock fractures in this area (Newman et al 1997), which provides a water source sufficient to maintain gas exchange even under severe conditions (figures 4–6; SI figures 2, 3, consistent with Schwinning 2010, Klos et al 2018, and Rempe and Dietrich 2018). This presence of quasi-permanent water may have promoted survival of this stand of trees during the 2002 drought and associated regional die-off (figure 7), and appears to have further promoted survival of the extreme drought and heat treatments we imposed in 2012–2016 (figure 1). Whole-tree PLC was significantly higher than twig level PLC (as has been observed before in the southwestern USA e.g. Johnson et al 2018), yet the presence of bedrock water significantly increased transpiration such that plants maintained functional gas exchange even under severe drought and heat. Both pine and juniper increased water uptake from the bedrock source under drought treatment (Grossiord et al 2017a).

The availability of bedrock water may have promoted this refugiums isolation from insects. This stand of trees is isolated from other piñon pine trees in particular (Breshears et al 2005, 2009, Garrity et al 2013; and figures 7(C), (D)), thus there are few piñon trees to host Ips confusus. Beyond our observation of zero pinon ips trapped at the site (using the standard technique; Lindgren 1983, Gaylord et al 2013), this isolation argument is supported by the known, and very short, active flight distances of bark beetles (Evenden et al 2014, Kees et al 2017), coupled with the extraordinary rarity of long flight distances when insects are entrained in aeolian dispersal (Safranyik et al 1992, Jackson et al 2008, de la Giroday et al 2012). Even if surviving (undetected) insects were in the region, there was likely to be high resistance to colonization of these trees by I. confusus given the relative minor stress our experimental trees endured (figure 2). Thus, bedrock water sources may ultimately have promoted this stand's survival from biotic insect attack, thus providing evidence of hydraulic refugia (McLaughlin et al 2017), with a subsequent feedback through isolation of the refugium from attacking insects.

It is possible that the trees would have survived insect attack if it had occurred, as they had no evidence of significant carbon starvation or hydraulic failure (figure 3), which would suggest they may have had sufficient defensive capacity had Ips confusus insects attacked. Thus we cannot conclude that the absence of insects allowed survival, but only that the absence of insects is an additional potential mechanism of persistence under drought and heat (consistent with García de la Serrana et al 2015). While thus speculative, the isolation of live trees from nearby conspecific hosts that carry attacking insects constitutes a potentially strong negative feedback on insect outbreak likelihood, by which outbreak likelihood is reduced via the decimation of host trees during a prior outbreak. This is a logical outcome of the spatial patterns of insect outbreaks, but not one that had previously been quantified empirically, nor under conditions of experimental warming (Logan et al 1998, Hart et al 2015). This negative feedback mechanism of forest resistance to climate-change-type-drought has similarities to fire-refugia, in which fires are less likely to reach remnant stands of trees due to the lack of fuel (Schoennagel et al 2009). Thus a prior beetle outbreak has reduced the abundance of live insect hosts in the vicinity, reducing exposure to bark beetle attack within the remnant stand during subsequent droughts.

Determining the regional frequency of forests that have access to quasi-permanent belowground water sources, and that are isolated from attacking insects, are large observational challenges we must consider before Earth system models can integrate these mechanisms into forecasts. For belowground water sources, we must know the overlap between vegetation rooting depths and quasi-permanent water store depths across regions. The creation of isolated stands of ponderosa pine (Pinus ponderosa) throughout the same landscape as our study site, during a severe regional mortality event in the 1950s, was associated with co-location of stands on deep soils (Allen and Breshears 1998), providing further support for the role of rooting depth or access to deeper soil water as a mechanism of persistence in this region. Promising datasets on water table depths are emerging (e.g. Pelletier et al 2016) but they are not yet available at sufficiently fine-scale to match the existing distribution of topography and vegetation in many landscapes. Likewise, in the absence of a local endemic population of tree-killing insects in an isolated forest stand, its likelihood of experiencing mortality due to insect attack is a function of the severity and proximity of the nearest ongoing outbreak of forest insects (Aukema et al 2008, de la Giroday et al 2012). Thus, while the mechanisms of persistence that we identified are clearly important at our site, it will be a larger challenge to ascertain how frequent these mechanisms manifest at landscape to regional scales.

We provide evidence of two-interdependent mechanisms of resistance of trees under futuristic conditions (Keppel et al 2012), in this case, the coupled hydraulic refugia and biotic isolation mechanisms. However, multiple questions remain. Our site is located at the upper elevation (wetter) ecotone for piñon pine, and experienced a large rain event in September 2013, both of which may be reasons why the bedrock had a significant amount of water to promote survival in subsequent years. Understanding interactions of mortality with landscape position and climate variability remains a challenge for this species of pine (Meddens et al 2015), despite the fact that this is among the best-studied plant species globally in regard to drought-associated mortality (Breshears et al 2018). Furthermore, some belowground water sources are ephemeral and thus will not necessarily sustain refugium into the future. Elevated CO₂ was not mimicked in our experiment, but this appears to have no impact on mortality likelihood under heat and drought (Duan et al 2014, Allen et al 2015). Lastly, this could be a selection event in which the remaining stand is adaptively predisposed to survive (Gutschick and BassiriRad 2003); testing this idea will require following forest refugia through multiple drought events.

Our results suggest trees may be particularly resistant to severe drought and heat if they have access to a quasi-permanent source of soil water, providing some optimism regarding the potential survival of trees under a changing climate relative to predictions that do not incorporate these mechanisms of persistence (McDowell et al 2016). The dual mechanisms of access to bedrock water and avoidance of subsequent insect outbreaks may mitigate the impacts of hotter droughts, promoting the perpetuation of forest patches in landscapes that have experienced widespread tree die-off. Incorporating the presence and mechanisms of forest resistance to climate-change-type-drought into earth system models may prove valuable to improve the predictive accuracy of future forest loss (Bonan and Doney 2018) and should be considered as we test the mechanisms of future survival (Lloret et al 2012). However to accomplish this we must understand the distribution of vegetation rooting depths relative to quasi-permanent sources of soil water, which is a large challenge. Because these hydraulic (Mclaughlin et al 2017) and insect refugia may be critical for the persistence of trees under a warming climate (Keppel et al 2012, Sanchez-Salguero et al 2017), preservation of refugium may be a strategic management choice to maximize species conservation into the future.
