Synthesis of oxide-free aluminum nanoparticles for application to conductive film

A simple solution process was used to synthesize oxide-free Al nanoparticles. Alane N,N-dimethylethylamine complex solution (0.5M in toluene, Sigma-Aldrich) was used as the Al precursor and Ti(IV) isopropoxide (99.999%, Sigma-Aldrich) was used as the catalyst. Tetrahydrofuran (THF, anhydrous, Sigma-Aldrich) was used as the solvent and washing agent. Oleic acid (OA, technical grade, 90%, Sigma-Aldrich) was used as the capping agent, which acted as a stabilizer and anti-oxidant. All the reagents were used as received, without further processing or purification, and they were treated under an argon atmosphere in a glove box to prevent oxidation. To synthesize the Al nanoparticles, we used the catalytic decomposition method invented by Haber and Buhro [28]. 5 ml of alane precursor was prepared in a vial and 4.4 μl of Ti catalyst (0.6 mol% of alane precursor) was gently added to the vial whilst being vigorously stirred with a magnetic bar at room temperature. The solution abruptly changed color to dark brown with the evolution of a gas. It then gradually changed color to black, indicating the formation of Al nanoparticles. After 1 h, we injected 20 ml of tetrahydrofuran to wash out the reacting residue. Pure Al nanoparticles were obtained after 30 min of centrifugation at 10 000 rpm. The mixture of tetrahydrofuran and 0.316 ml of oleic acid (0.5 mol of Al) was then injected into the Al nanoparticles to prevent oxidation and growth. We had now obtained oxide-free oleic acid capped Al nanoparticles.

To fabricate aluminum nano-ink, the as-synthesized oxide-free aluminum nanoparticles needed to undergo a washing process to remove excess oleic acid. After the nanoparticles, along with the mixture of toluene and ethanol, were centrifuged at 10 000 rpm for 30 min several times, the remaining nanoparticles were dispersed into the toluene solution with a particle content of 30 wt%. The prepared nano-ink then homogenized on the rolling station overnight. Conductive film was fabricated by spin coating aluminum nano-ink onto glass substrate. The spin coating was conducted in a glove box in an argon atmosphere to prevent surface oxidation and the speed of spin coating was 1000 rpm, for 30 s. After this it was sintered in a reducing atmosphere (10% hydrogen with 90% argon gas) at temperatures of 200 °C, 300 °C, 400 °C, 500 °C and 600 °C. To measure the electrical resistivity of the conductive film, we needed data on two factors: sheet resistance and the thickness of the conductive film. The sheet resistance was measured using a four-point probe. The thickness was measured using scanning electron microscopy (SEM) analysis by obtaining an image of a vertical section of the conductive film.

The size and shape of Al nanoparticles were observed by transmission electron microscopy (TEM, JEM-2100F, JEOL) and high-resolution TEM (HRTEM, F30 ST, Tecnai). Selected area electron diffraction (SAED) was used to determine the microstructure of the Al nanoparticles and the presence of a uniform organic layer. To calculate the size distribution of the Al nanoparticles, we used TEM images to select more than 100 nanoparticles. We prepared samples for the TEM analysis by dropping tetrahydrofuran solution containing Al nanoparticles onto copper grids coated with carbon film. To confirm the existence of an organic layer around the nanoparticles, we used x-ray photoelectron spectroscopy. Oleic acid capped Al nanoparticles were dried in vacuum and placed on a wafer substrate for XPS analysis, which was used to determine the binding energy between the organic ligand and the metal surface. The prepared nanoparticles were stored in a low humidity desiccator for two days before XPS measurements, which means that the oxidation stability of nanoparticles in this study is limited to two days in air. The values of the binding energy were calibrated using the C 1s peak, which was set at 284.5 eV. To analyze the surface morphology and the thickness of the film after sintering, we used images from a field emission scanning electron microscope (FESEM, Nova230). To characterize the decomposing temperature of the capping molecule, we conducted thermal gravimetric analysis (TGA) (Mettler–Toledo), where the temperature was increased from 25 °C to 700 °C at a heating rate of 10 °C min⁻¹ with the sample under a nitrogen atmosphere. To determine the structure of Al film after sintering, x-ray diffraction (XRD) data were obtained using a Rigaku D/max-2500 diffractometer with Cu Kα radiation at a scan rate of 1 ° min⁻¹. A four-point probe (CMT-SR1000N) was used to measure the sheet resistance. The contact potential difference was measured using a scanning Kelvin probe microscope (SKPM, Park Systems).

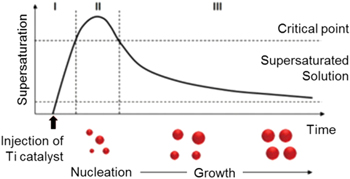

The oxide-free aluminum nanoparticles were synthesized by catalytic decomposition of an alane precursor in the presence of oleic acid, which prevents the formation of the surface oxide of aluminum nanoparticles. The size of the aluminum nanoparticles was varied by the injection time of oleic acid. This synthetic mechanism can be explained by figure 1, which shows the nucleation and growth of aluminum nanoparticles with a La Mer plot [29]. When the catalyst was injected ino the alane precursor, the burst nucleation of aluminum nanoparticles took place at the critical point of supersaturation. The growth step followed, and the size of the aluminum nanoparticles increased through ripening other particles with the passage of time. Therefore, aluminum nanoparticles were grown by 22.3 nm, 40.1 nm and 169.53 nm, respectively, over the time periods of 1 h, 2 h and 3 h, as shown in figure 2. The completion of the growth step was closely related to the injection of oleic acid because the functional group of carboxylic acid was forming a SAM on the aluminum surface. The mechanism of the formation of a SAM of carboxylic acid onto aluminum nanoparticles was reported by Crowell et al [30], and the close packing of the organic layer effectively protects the nanoparticles from oxidation [31].

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

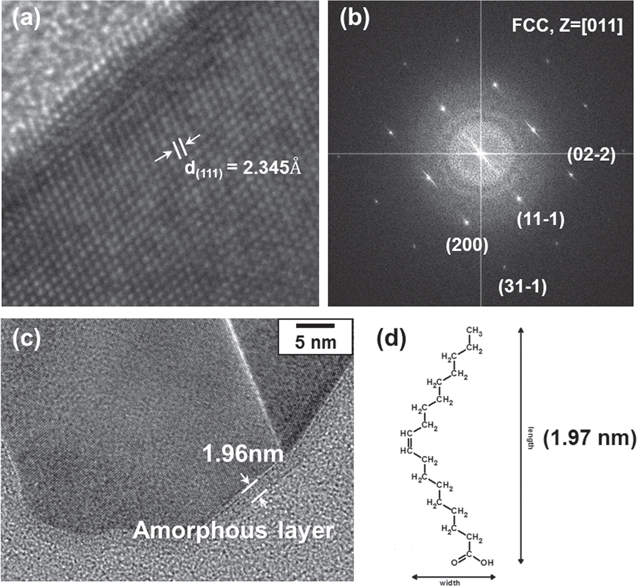

The SAED and HRTEM images in figures 3(a), (b) were used to confirm the microstructure of aluminum nanoparticles. A clear and continuous lattice fringe was observed, and the interplanar distances (0.24 nm) measured on the images corresponded to the aluminum orientation of FCC (111) planes, which is also in agreement with the SAED pattern. As shown in figure 3(c), crystalline aluminum nanoparticles were surrounded by a uniform 1.96 nm amorphous layer, which are considered to be capping the molecule. Although the thickness of the amorphous layer was the length of the oleic acid monomer, it was not fully demonstrated that oleic acid surrounds the aluminum nanoparticles.

Zoom In Zoom Out Reset image size

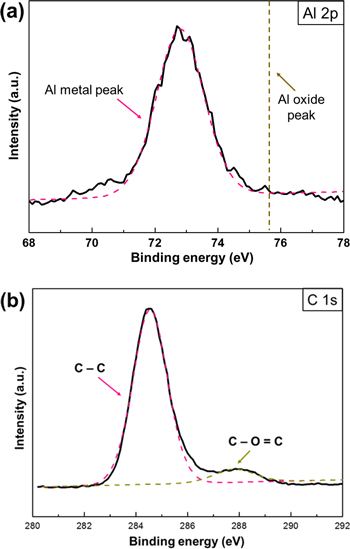

To precisely identify the amorphous layer, XPS analysis was carried out. In the case of the oleic acid capped aluminum nanoparticles we carefully observed the two main spectra, Al 2p and C 1s. As shown in figure 4(b), two C 1s peaks were observed at 284.5 eV and 288.4 eV. Generally, the main peak at 284.5 eV was attributed to the carbon atoms in the alkyl chain (C-C), which indicates the long carbon chain of oleic acid (C18). The shoulder peak at 288.4 eV is assigned to the carboxylate (−COO⁻) carbon, which corresponds to the other report that the carboxyl functional group was adsorbed on the aluminum surface as a reduction of the hydrogen cation [32]. In addition, the carboxylic carbon peak, which is located at 290.0 eV, did not appear on the C 1s spectrum. Therefore, we confirmed that oleic acid existed around the aluminum nanoparticles with the formation of SAM between the aluminum metal and the carboxylate of oleic acid. On the other hand, the Al 2p peak shows the simple peak at 72.7 eV, which indicates pure aluminum metal bonding. In addition, no oxide peak (75.7 eV) appears in this spectrum, so the XPS results show that aluminum nanoparticles did not have an oxide layer, only an organic capping layer.

Zoom In Zoom Out Reset image size

In this study, we demonstrate that unoxidized Al nanoparticles are an alternative material for use in conductive electronics printing. The conventional materials used for printing are noble metals which are very costly. With the Al nanoparticle, conductive electronics printing can be done cost effectively. To confirm the characteristics which make it suitable for application in electronics, we prepared conductive film by spin coating with Al nanoparticle ink. The as-prepared Al film is composed of individually isolated particles, which are converted into a continuous film by thermal sintering conducted in a tube furnace in a reducing atmosphere. We then measured the variations in the resistivity of the Al nanoparticle film using a four-point probe. Figure 5 shows electrical resistances in relation to the sintering temperatures. It implies that the electrical resistance of the film is closely related to the temperature at which it is sintered.

Zoom In Zoom Out Reset image size

The morphological change of the particles in the sintering process is the result of heating causing atom movement. At higher temperatures, atoms have the energy to move to a new position; energy is needed to break the atomic bond and free the atom from neighboring atoms. The minimum energy required for an atom to move is called the activation energy. The number of atoms with sufficient energy to move at high temperatures is explained by a statistical concept derived from the Arrhenius temperature relationship, using the equation below [33].

$$\begin{eqnarray*}&&\displaystyle \frac{N}{{N}_{0}}=\exp \left(-\displaystyle \frac{Q}{RT}\right)\end{eqnarray*}$$

N/N₀ is the ratio of moving atoms to all atoms, Q is the activation energy, R is the gas constant and T is temperature. Activation energy is the minimum energy required to free an atom from its neighboring atoms. With higher temperature, more energy is provided to overcome the activation energy. As a result, atoms are more likely to migrate. Therefore, with a higher sintering temperature, the Al nanoparticles are more likely to transform into continuous film.

The transformation of the particles into continuous film was observed using SEM. As shown in figures 6(a)–(c), the surface morphologies of the films from different sintering temperatures are captured. The coalescence starts from 400 °C, which is higher than the boiling temperature of oleic acid (360 °C). When the nanoparticles sintered at 200 °C, the Al nanoparticles exhibited a small particle size, and did not physically contact each other. When the Al nanoparticles sintered at over 400 °C they showed little aggregation between particles and their average size gradually increased as the sintering temperature increased. When they were sintered at 600 °C, the Al nanoparticles were fully in contact with each other because the temperature was elevated to near the melting temperature. Thus, Al nanoparticles show the lowest resistivity (4.12 × 10⁻⁵ Ω · cm), which is about ten times greater than that of bulk Al, and we expect that the resistivity will converge to bulk conductivity with sintering at the melting temperature (660 °C). This value is meaningful because its electrical properties have been shown to improve by about two orders of log scale compared with another study [34], and the study of Al nanoparticles for application as a conductive material has not yet been much reported.

Zoom In Zoom Out Reset image size

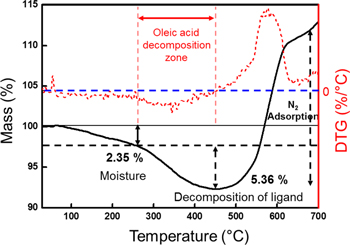

The decomposition of the surface ligand was confirmed by TGA analysis in figure 7. The TGA can be roughly divided into three sections. There are two weight loss sections: decomposition of moisture and decomposition of oleic acid. One is the weight gain section, which is the adsorption of N2. Generally, the moisture or residual solvent was decomposed from the beginning of the TGA, and 2.35% of the moisture decomposed at the first weight loss step. DTG (differential of TG) was used to determine the unclear point of the oleic acid decomposition step. The decomposition of the surface ligand started from 260 °C and the amount of decomposed ligand was 5.36% as a total. However, the slope started to increase at around 400 °C plus, which implies that the organic layer decomposes and gas adsorption occurs at the same time from this point. Therefore, Al nanoparticles can be oxidized without an organic capping layer, but it is stable with an organic layer.

Zoom In Zoom Out Reset image size

As mentioned above, the level of oxidation of Al nanoparticles also needs to be considered while sintering. When the surface ligand around the nanoparticles starts to decompose, Al nanoparticles would absorb oxygen or nitrogen from the surrounding atmosphere due to the high surface energy of the bare nanoparticles. For example, when nanoparticles are sintered in a nitrogen atmosphere, nitrogen is adsorbed onto the surface of the Al during the decomposition of the surface ligand, as result of TGA, in figure 7. However, figure 8 shows that only characteristic diffraction peaks of Al with a face-centered-cubic crystal structure (JCPDS 04-0787) appeared in the Al film after sintering in a reducing atmosphere. On the other hand, a crystalline alumina (Al₂O₃) peak was not detected. To confirm whether an amorphous oxide layer existed, the XPS analysis was carried out. We confirmed that a 3.5 nm thick amorphous oxide was formed on the surface of the Al film (initially) and it increased to 4.3 nm after 18 months. The thickness was calculated by quantitative analysis of the XPS peak [35]. The oxide formation seems native by nature. To confirm the oxide effect on the conductive film, we measured the electrical resistivity of thin film. Even though the resistivity slightly increased to 3.2 × 10⁻³ Ω · cm, the conductive film maintained its electrical resistivity as low as the level of commercial Ag-epoxy conductive paste. This implied that the film properties became metallic during sintering, and that the amorphous native oxide was formed after sintering.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

In addition, one of the important properties of Al film is its work function, because Al can be applied to the electrode of an active device such as a photovoltaic or light emitting diode. In fabricating an active device, its structure is critical in enhancing efficiency. A metal electrode with a low work function is preferred to injecting many electrons at low potential. To measure the work function of Al nanoparticles, we used contact potential difference (CPD) via SKPM. Generally, SKPM is considered to be a suitable noncontact method to map the two-dimensional distribution of CPD between the tip and a sample. CPD can be converted into the work function of the sample using the following relation.

$$\begin{eqnarray*}&&{W}_{{\rm{s}}{\rm{a}}{\rm{m}}{\rm{p}}{\rm{l}}{\rm{e}}}={W}_{{\rm{t}}{\rm{i}}{\rm{p}}}-{q}{V}_{{\rm{C}}{\rm{P}}{\rm{D}}}\end{eqnarray*}$$

W_sample and W_tip are the work function of the sample and the tip, respectively, q is the electronic charge and V_CPD is the CPD measured by SKPM [36]. As shown in figure 9, we already know the work function of the tip (ϕ of PtCr = 4.90 eV) and of the as-prepared substrate (ϕ of ITO = 4.7 eV), so the work function of Al film is 4.22 eV. Al nanoparticles are more efficient than a noble metal such as Ag or Cu for use in the electrode due to its low work function, and the fact that it will improve the efficiency of electron injection in the cathode of an OLED or OPV [37].
